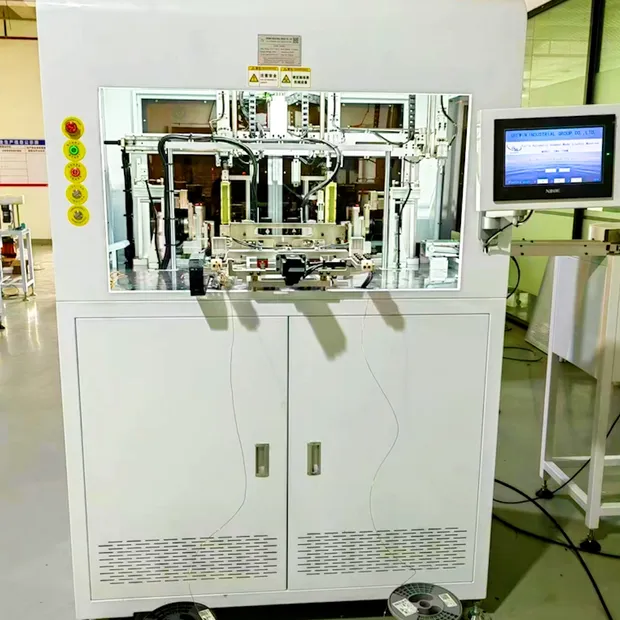

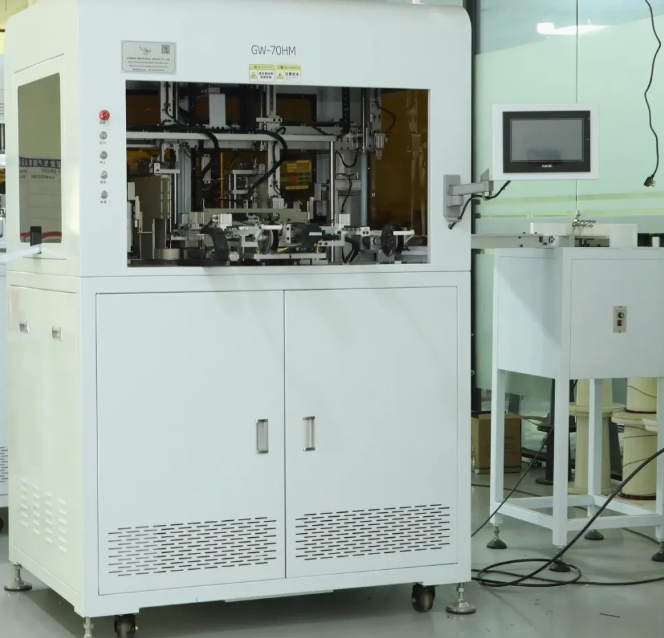

A fully automatic CNC hook coil winding machine engineered for high-efficiency production of two or three-phase chokes and toroidal common inductors.
Features dual winding heads to process both sides of the coil simultaneously, maximizing throughput.
Achieves a comprehensive pass rate of 99.5%, ensuring consistent quality and minimizing material waste for bulk production.
The system is equipped with a PLC computer numerical control (CNC) for precise, repeatable winding operations.
Designed for fully automatic loading, winding, and unloading, enabling one operator to manage multiple machines.
Servo motor integration ensures high-speed, stable performance with precise tension control for wire diameters from 0.5mm to 2.0mm.
Suitable for producing toroidal common inductors and chokes for two and three-phase electrical systems.
Applicable Wire Diameter: 0.5mm - 2.0mm
Compatible Magnetic Ring Outer Diameter: 14mm - 45mm
Control System: PLC Computer CNC with Servo Motors
Power Supply: 220V/50Hz Single-Phase AC
Required Air Source: 0.55MPa - 0.60MPa
Dimensions (L*W): 3050mm * 1150mm
