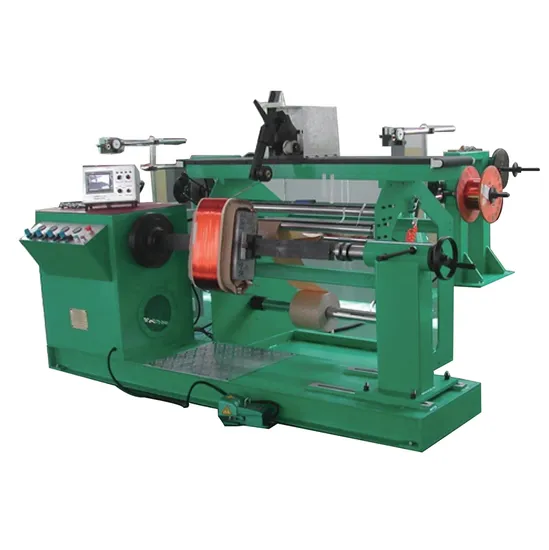

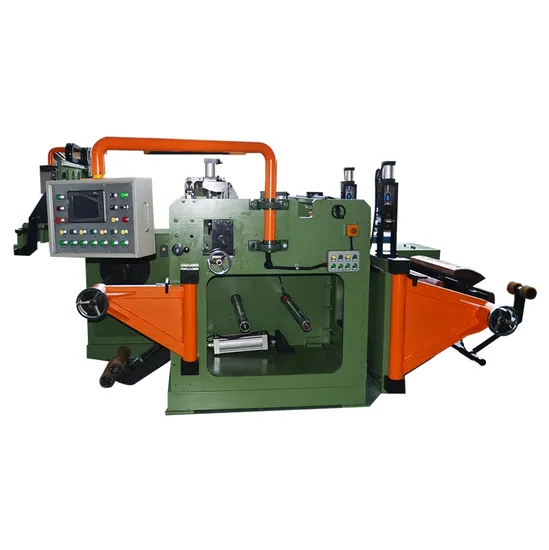

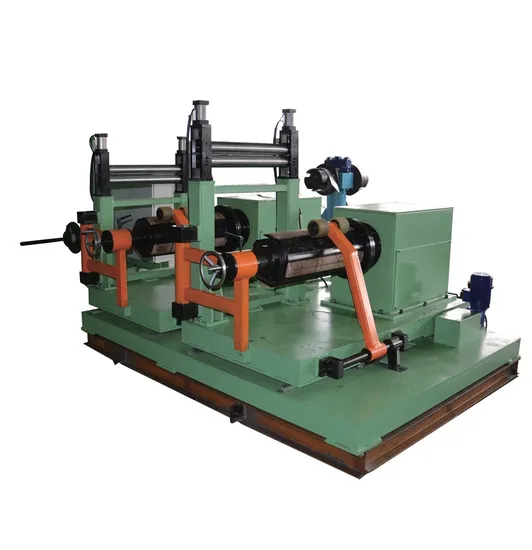

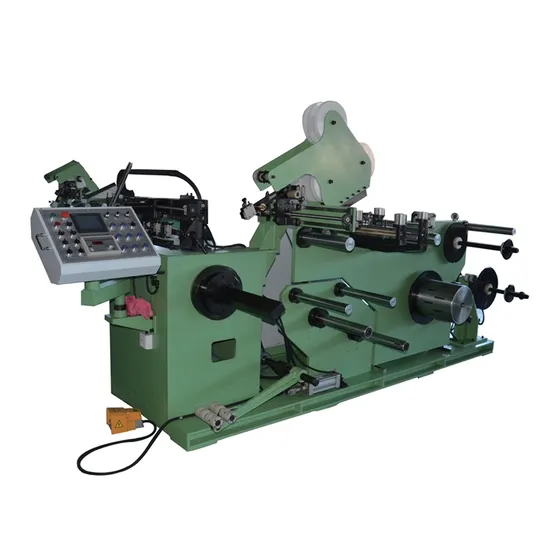

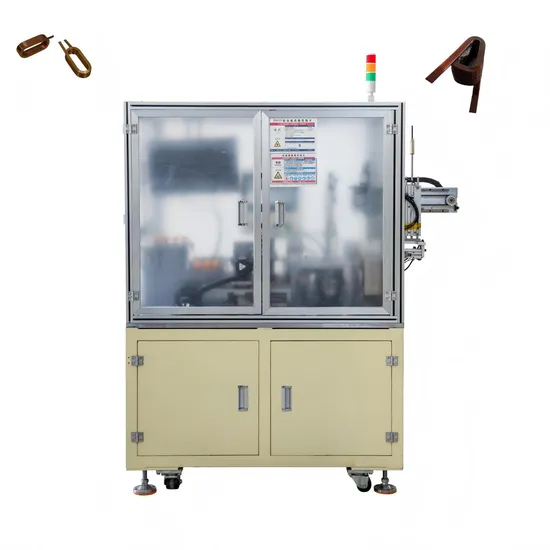

High-efficiency combined foil and wire winding machine, engineered for precise manufacturing of transformer and reactor coils.
Dual-purpose functionality for both foil and wire winding enhances production versatility for transformer and reactor manufacturing.
Features advanced PLC control with a touch-screen interface for precise, automated winding operations and simple parameter setting.
Equipped with a robust pneumatic tension control system to ensure consistent coil tightness and superior quality.
Integrates a servo motor-driven rectification system for automatic and accurate foil alignment during the winding process.
Designed for winding round, ellipse, and rectangular coils, accommodating both high-voltage and low-voltage applications.
Foil Material: Copper (0.3-1.5mm thickness) or Aluminum (0.3-1.5mm thickness)
Foil Width: Up to 600 mm
Applicable Wire Size: Round wire Φ0.3-3.0 mm; Flat wire up to 3×12 mm
Max Coil Outer Diameter: Up to Φ600 mm
Winding Speed: 0-25 r/min for foil, 0-200 r/min for wire, with stepless frequency regulation
Control System: PLC automatic control with touch panel interface
