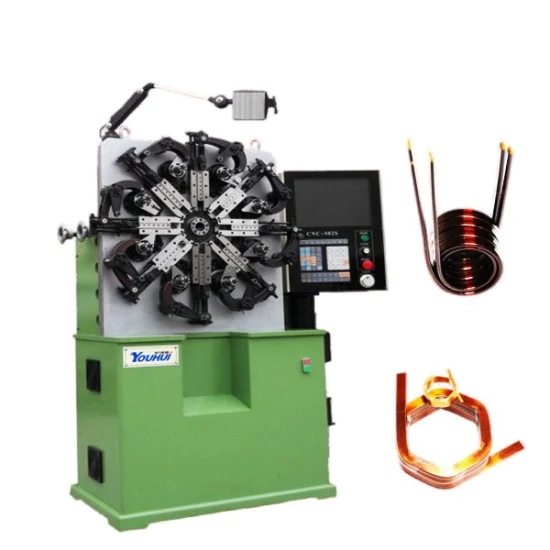

A high-precision, 6-axis CNC machine for automatically winding multi-layer round and rectangular air core coils for the electronics, digital, and automotive industries.
Features high-performance servo motors for precise and accurate operation, significantly reducing positioning errors.
Engineered with an optimized mechanical structure to ensure smooth, stable performance during winding and peeling.
The main winding shaft utilizes advanced technology to minimize rotation concentricity error, ideal for flat wire coils.
Fully automated functionality increases production efficiency, capable of producing 0-50 units per minute.
Versatile application range, suitable for manufacturing coils used in electronics, digital devices, mobile phones, and automobiles.
Designed to handle a wide wire diameter range from Φ0.8mm to 3.0mm for diverse manufacturing needs.
Model: YH-630
Number of Shafts: 6
Applicable Wire Diameter: Φ0.8mm - 3.0mm
Production Yield: 0-50 pieces per minute
Total Power Consumption: 7.6 kW
Machine Dimensions (L*W*H): 2000mm * 1300mm * 1650mm
