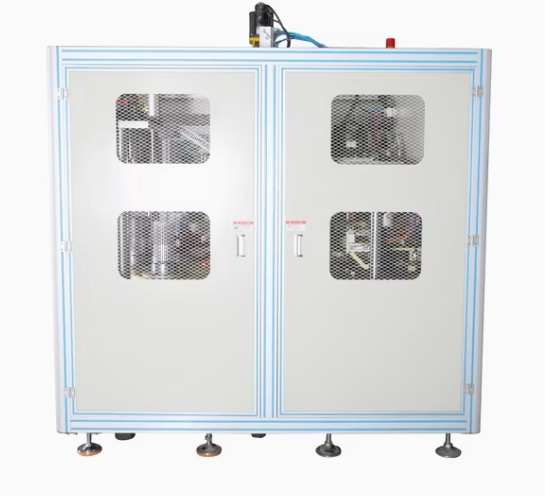

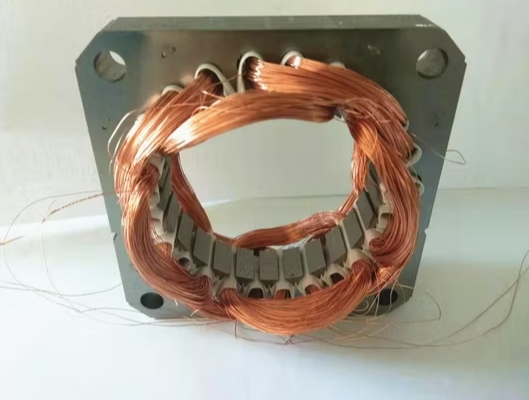

High-efficiency automatic 3-head, 6-station coil winding and inserter machine specifically designed for mass production of ceiling fan stators.
Integrates automatic coil winding and insertion for streamlined ceiling fan stator production.

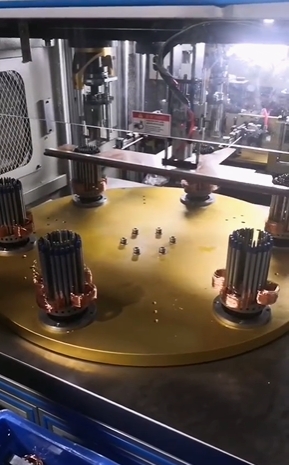

Features a 3-head winding and 6-station rotary design for high throughput.

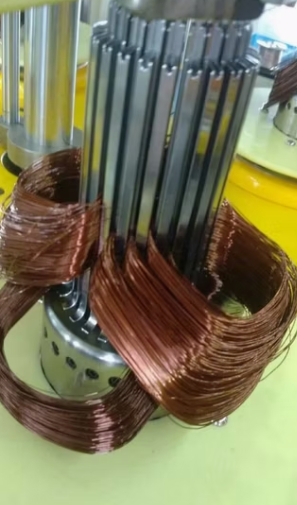

Precisely winds coils onto tooling for seamless transfer and insertion into stator slots.
Utilizes a robust combination of mechanical, pneumatic, and AC servo systems.
Controlled by an industrial PLC for reliable automation and easy parameter setting.
Equipped with a display for monitoring turns, status, and diagnostic information.
Designed for efficient winding of 2, 4, 6, or 8 pole ceiling fan motors.
Configuration: 3 Winding Heads / 6 Stations
Max Winding Speed: 2000 rpm
Suitable Wire Diameter: 0.3 - 1.2 mm
Suitable Motor Poles: 2, 4, 6, 8
Max Coil Segments per Cycle: 6
Control System: Industrial PLC with AC Servo Drive
